Modula Twin X-Series

Guaranteeing zero compromise, Modula Twin X-Series is a side-entry robot specially designed to reduce cycle time for stack molding applications. A robust structure in steel, light alloys and carbon fibre are at the core of a mechanical design conceived to withstand maximum stresses, ready for the highest acceleration and speeds available.

Do you need more information about our industrial robots?

Contact us
modula-twin-x-series-industrial-side-entry-robot-campetella-robotic-center

Do you need more information about our industrial robots?

Contact us

Quality, precision and productivity for stack molding applications

Modula Twin X-Series is a side-entry robot recommended for extremely fast work cycles, and single or multi-cavity use on medium-high tonnage IMMs.

  • Press up to 1000 tons
  • Z axis 2550-2970 mm (x2)
  • X axis 300 mm (x2)
  • Unloading axis 1300 mm
  • Capacity up to 15 kg (x2)
  • Dry cycle: 2.5"
modula-twin-x-series-industrial-side-entry-robot-designed-to-reduce-cycle-time-for-stack-moulding-applications-campe

Features and benefits of Modula Twin X-Series robot

Discover further details about the features of the Modula Twin X-Series industrial side-entry robot and the benefits for production offered by its special configurations.

Equipped with the most advanced Campetella EVO control unit

Campetella EVO is a CNC control unit featured by last generation hardware and software that assures the most advanced functions for maximum control. Through a light and ergonomic interface, it allows to easily program and manage all the robot’s functions.
Would you like to get to know more about the EVO console?
Discover our X-Series Evo controller!
linear-robot-stack-moulding-for-iml-applications-campetella-modula-twin-x-series

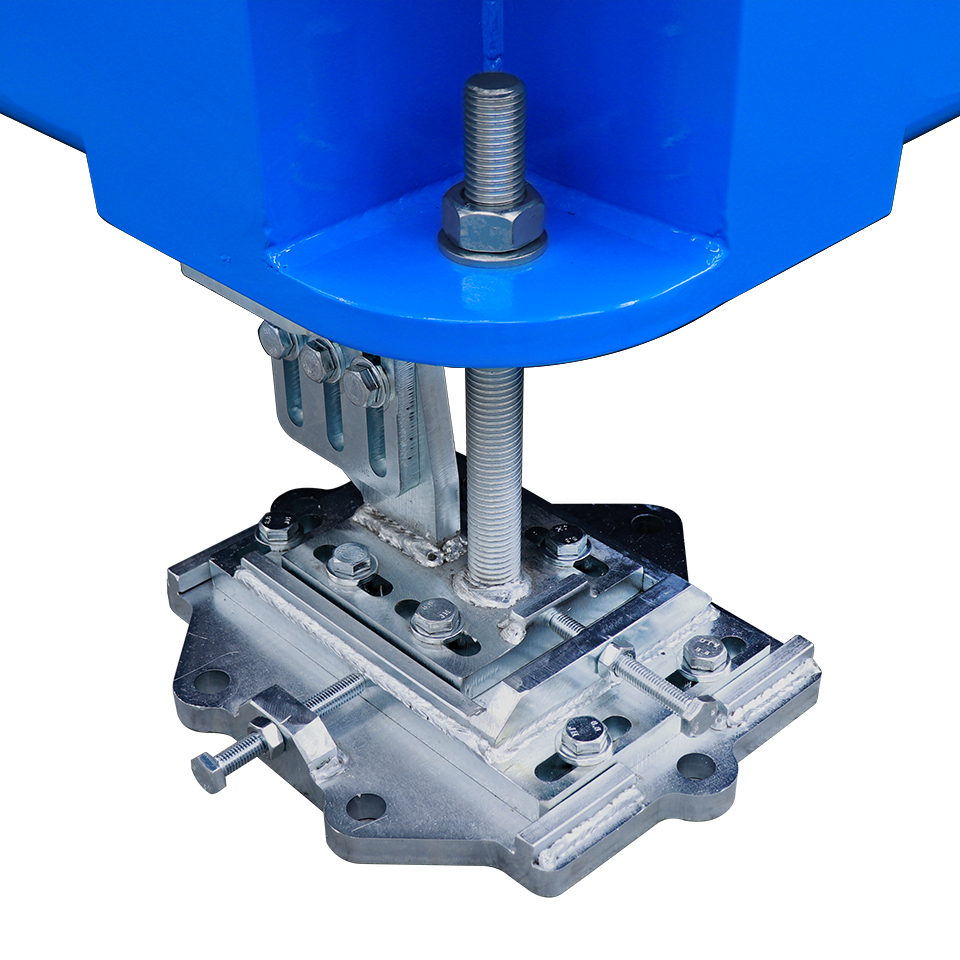

Stable and anchored to the ground

Just like a race car, Modula Twin X-Series is the result of careful design choices targeted at guaranteeing optimal acceleration and speed with total stability.

The solid standing base in welded steel represents the foundation for a structure that is anchored to the ground and free from any vibration originating from the press. The load-bearing bar, fixed with rigid supports to the base, is kept low to the ground, guaranteeing a low centre of gravity and reduced movement. All of this translates into extremely robust mechanics, necessary to support the maximum drive of the powerful brushless servomotors powering moving parts.

robot-stack-moulding-applications-medium-high-tonnage-modula-twin-x-series

Light and resistant where it matters

While the standing frame is heavy and robust enough to offer high levels of stability, the moving parts are predominately machined from solid using high-resistance aluminium alloys and carbon-fibre arms. Profiles and shapes have been carefully refined to guarantee maximum resistance and reliability, reducing inertia. In other words, Modula Twin X-Series adopts highly sophisticated technical solutions more commonly found in the fields of aviation and motor-racing, in its search for the most powerful acceleration and speed.

modula-twin-x-series-moulding-applications-medium-high-tonnage-presses-campetella

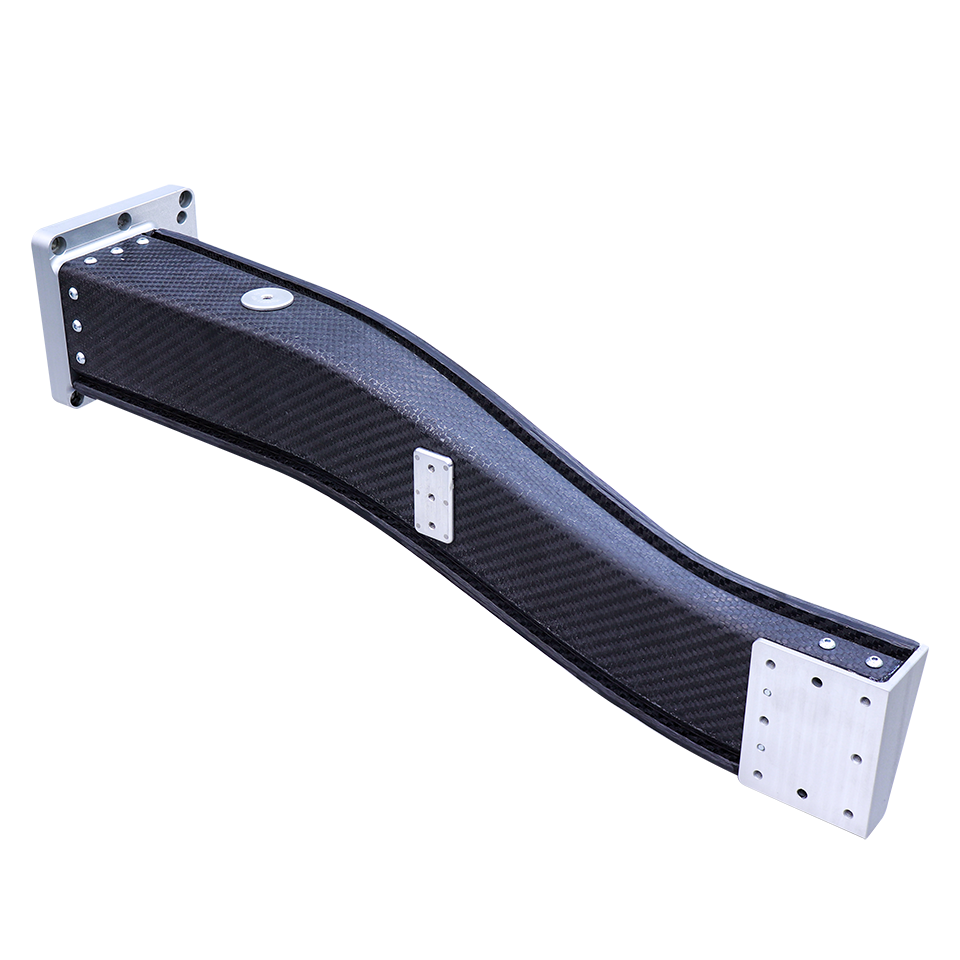

Innovative carbon-fibre arm with twisted profile

Similar to technology used in aircraft wings, Modula Twin X-Series is equipped with a carbon-fibre arm with a specially shaped, twisted profile. This solution gives the robot unequalled rigidity, practically eliminating all vibration from the gripping tool. The specially shaped twisted profile also minimises the dimensions of the arm, which is particularly useful for reducing the opening stroke (and cycle time) in injection-moulding presses. To summarise: maximum precision under the most demanding usage conditions, with high payloads and minimal cycle times.

campetella-robot-stack-moulding-applications-medium-high-tonnage-modula-twin-x-series

Self-lubricating runners, long-term zero maintenance

The Modula Twin X-Series side-entry robot is equipped with self-lubricating guide blocks using ball recirculation on prismatic rails in tempered steel. This system allows operation without greasing the rails for over 40,000 km, offering significant savings on maintenance and reduced system outages.

Technical features

Technical specifications

Modula – 1 Twin

Modula - 2 Twin

Maximum load capacity [kg]:


15 (x2)

15 (x2)

Z Axis stroke - Transversal [mm]:


2550 (x2)

2970 (x2)

X Axis stroke - Extraction arm [mm]:


300 (x2)

300 (x2)

Unloading-axis stroke - Vertical [mm]:

600

600

Axis movement:


AC synchronous brushless servomotors


Axis guide system:

Self-lubricating guide blocks with ball recirculation on prismatic rails in tempered steel

Repeatability of positioning [mm]:

± 0.1


Controller:


Campetella EVO proprietary system
