GS2W X-Series

A top-entry premium class robot with double vertical axis designed for the most extreme performances: ultra-high-performance motors combined with materials used in the aerospace industry ensure record-breaking accelerations and speed, for operating cycle times of up to 3.0 seconds.

Do you need more information about our industrial robots?

Contact us
gs2w-x-series-top-entry-robot-with-double-vertical-axis-campetella

Do you need more information about our industrial robots?

Contact us

The ultra-fast top-entry robot with minimal footprint for stack molding applications

The GS2W X-Series Cartesian robot is designed for stack molding applications and boasts extremely low cycle times, similar to those of side-entry robots, despite having a minimal footprint typical of top-entry robots. The initials of this model are the acronym for the word “GunShot”, which describes its explosive speed.

  • Press up to 400 tons
  • Carbon Technology: carbon fibre double vertical axis
  • 5 servo axes
  • Wrist with pneumatic C axis
  • Z axis stroke: 2000-2500 mm
  • X axis stroke: 600 mm
  • Y axis stroke: 1200 mm
  • Capacity up to 2.5 kg
  • Dry Cycle: 3.0"
top-entry-robot-with-double-vertical-axis-for-stack-moulding-applications-gs2w-x-series-campetella

Equipment and benefits of the GS2W X-Series model

Find out more about the Cartesian robot GS2W X-Series’ equipment and the benefits it brings to production.

Equipped with the most advanced Campetella EVO control unit

Campetella EVO is a CNC control unit featured by last generation hardware and software that assures the most advanced functions for maximum control. Through a light and ergonomic interface, it allows to easily program and manage all the robot’s functions.
Would you like to get to know more about the EVO console?
Discover our X-Series Evo controller!
campetella-robot-stack-moulding-applications-gs2w-x-series

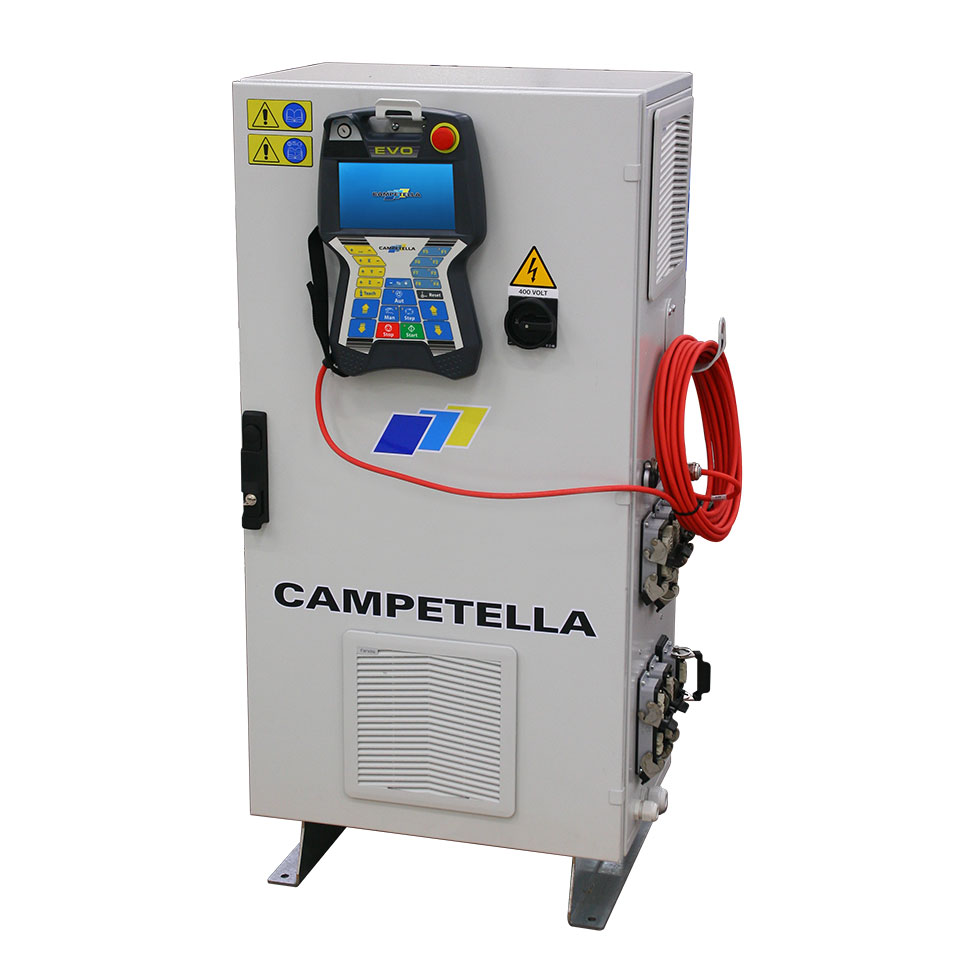

Electric panel on the ground

GS2 X-Series is exclusively equipped with the electric panel on the ground, for a reduce footprint and maximum user-friendliness.

The floor-standing cabinet, entirely isolated from vibrations coming from the press, is extremely reliable in the most severe operating conditions.

double-vertical-axis-for-stack-moulding-applications-gs2w-x-series-robot-campetella

The mechanical structure of GS2W X-Series

Featured by the extraction axis cantileverally fixed on the side opposite the hopper. The strength of this architecture is the absence of collision problems between the robot and the hopper.

Reliability and safety: the innovative anti-collision software

The innovative software prevents the two vertical axes from colliding in any condition, even in case of programming errors, guaranteeing the utmost safety and reliability in stack-mould applications.

Carbon Technology: exclusive vertical axis made of carbon fiber

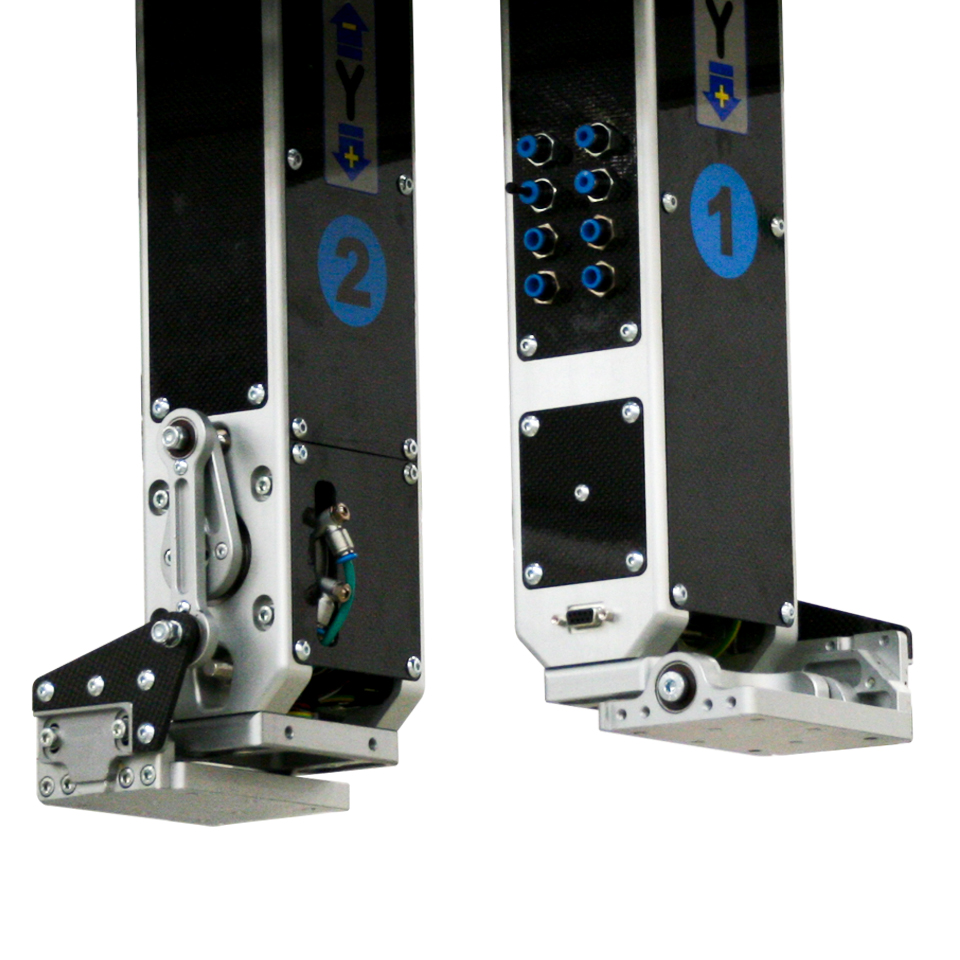

In order to minimize the shifting masses and allow maximum acceleration, we have developed an exclusive vertical axis made of carbon fiber. At once light and robust, it is of the direct single-stroke type. Maximum precision thanks to the guide system with self-lubricating sliding blocks and roll-by-balls on hardened steel prismatic guides.

campetella-top-entry-robot-for-stack-moulding-applications

Wrists with servo-brushless C axis for maximum efficiency

The GS2W X-Series exclusively has a wrist with servo C axis on each vertical axis, featuring high torque and an extremely high degree of control. Thanks to the broad 180° rotation range, the picking side on the press can be reversed from the programme without any manual intervention.

Please, accept marketing cookies to watch this video.

Technical features

Technical features

GS2W-1B

GS2W-2B

Maximum payload [kg]:

2,5

2,5

Vertical axis:

Direct

Direct

Z axis stroke – Horizontal [mm]:

2000

2500

X axis stroke - Extraction [mm]:

600

600

Y axis stroke - Vertical [mm]:

1200

1200

X,Y,Z axes motion:

AC synchronous brushless servomotors


AC synchronous brushless servomotors


X,Y,Z axes guidance system:

Sliding blocks with roll-by-balls on a hardened steel prismatic guide


Sliding blocks with roll-by-balls on a hardened steel prismatic guide


Positioning repeatability [mm]:

± 0,1



± 0,1



Pneumatic C axis rotation [deg]:

0°/ 90°


0°/ 90°


Control unit:

Campetella EVO proprietary system

Campetella EVO proprietary system
