Spin 1 X-Series

The innovative high-speed SCARA Spin 1 X-Series revolutionises the world of ultra-fast SCARA robots. Using latest-generation technologies and materials, including carbon fibres and additive moulding, it ensures limited weight, high performance and lower power consumption.

Do you need more information about our industrial robots?

scara-robot-spin1-x-series-evo-campetella-robotic-center

Do you need more information about our industrial robots?

Compact and agile in quick pick & place applications

Spin 1 X-Series is a compact SCARA robot, designed to ensure reduced cycle times in quick pick & place applications with payloads of up to 2 kg.

Capacity: up to 2 kg
Working radius: 800 mm
J1 rotation range: ± 100°
J2 rotation range: ± 154°
J3 vertical travel: 100 mm
J4 rotation range: ± 660°

scara-packaging-robot-spin1-x-series-evo-campetella-robotic-center

Factory features and benefits of the Spin 1 X-Series robot

Find out more on the factory features of the Spin 1 X-Series industrial side robot and on the benefits it offers for your production thanks to its special settings. Request information

Equipped with the most advanced Campetella EVO control unit

Campetella EVO is a CNC control unit featured by last generation hardware and software that assures the most advanced functions for maximum control. Through a light and ergonomic interface, it allows to easily program and manage all the robot’s functions.
Would you like to get to know more about the EVO console?

Discover our X-Series Evo controller!

packaging-robot-spin1-x-series-evo-campetella-robotic-center

The benefits of advanced materials

Spin 1 X-Series boasts the tested and approved architecture of high-speed SCARA robots, with the vertical axle placed at the extremity of the arm, perfect for applications involving low payloads. Its distinctive element is the use of highly advanced materials, typically used in the aviation and the competitions industries: carbon fibre arms and components made of additive moulds ensure low weight, no vibrations, and reduced consumption even under severe conditions.

Super-complete standard factory equipment

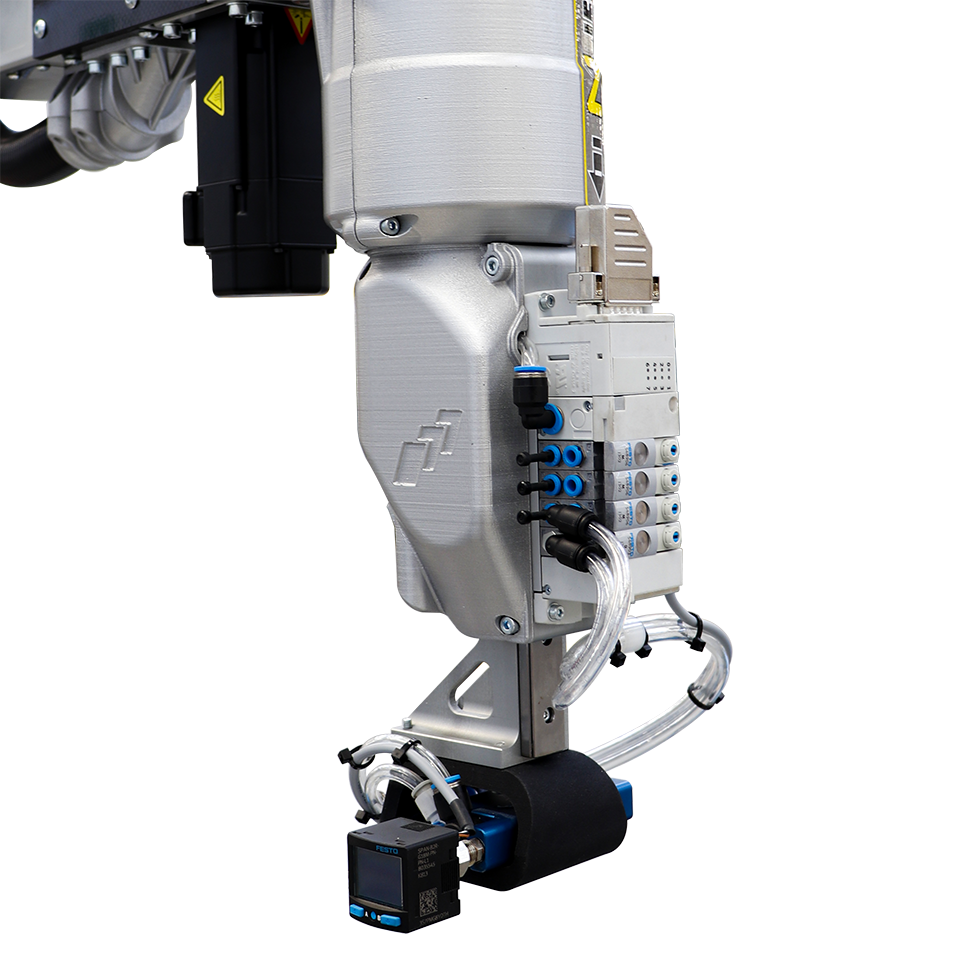

Spin 1 X-Series is chock-full of factory items: pressure and vacuum lines to manage the pick-up hand, a wide number of connectors to control external peripherals, and software with countless versions make this robot extremely versatile and complete.

scara-packaging-robot-spin1-x-series-evo-campetella-italy

Top-quality strain wave gear reducers with super-high reliability

Spin 1 X-Series is equipped exclusively with top-quality strain wave gear reducers: extremely compact and efficient, they ensure accurate working throughout the robot’s life, without any maintenance.

Technical features

	SPIN 1 - 800 HS
Maximum capacity [kg]:	2
Working radius [mm]:	800
Working area:
J1 rotation [deg]:	±100
J2 rotation [deg]:	±154
J3 vertical travel [mm]:	100
J4 rotation [deg]:	±660
Axle movement:	AC synced brushless servo motors
Positioning repeatability [mm]:	± 0.1
Control unit:	Campetella’s EVO proprietary system
