MC3 E-Series

The MC3 E-Series is a last generation industrial linear robot, designed for high performance, accuracy and reliability. The most advanced functions for the ultimate level of control.

Do you need more information about our industrial robots?

injection-molding-robot-mc3-e-series-evo-campetella-robotic-center

Do you need more information about our industrial robots?

The suitable robot for medium and large-sized tonnage injection molding machines

The MC3 E-Series Cartesian industrial robot is recommended for the automation of medium and large-sized tonnage injection molding machines.

IMM up to 1000 tons
Configurable vertical axis: L type
Configurable wrist: up to 4 servo-driven digital axes
Z axis stroke: 2500-3000-3500 mm
X axis stroke: 1200 mm
Y axis stroke: 1800 mm
Payload up to 16 kg
Dry Cycle of 10”

cartesian-top-entry-robot-mc3-e-series-evo-campetella-italy

Equipment and benefits of the MC3 E-Series model

Find out more about the Cartesian robot MC3 E-Series’ equipment and the benefits it brings to production, also thanks to its special configurations. Ask us for more information.

Equipped with the most advanced Campetella EVO control unit

Campetella EVO is a CNC control unit featured by last generation hardware and software that assures the most advanced functions for maximum control. Through a light and ergonomic interface, it allows to easily program and manage all the robot’s functions.
Would you like to get to know more about the EVO console?

Discover our X-Series Evo controller!

injection-molding-cartesian-robot-mc3-e-series-evo-campetella-robotic-center

CNC control cabinet integrated on board

MC3 E-Series is equipped with a CNC control cabinet integrated on board. As a result, ground footprint is zeroed and the maximum plant cleaning is guaranteed, due to the total absence of wiring on the pavement.

campetella-robotic-center-mc3-e-series-evo-injection-molding-robot

The mechanical structure of MC3 E-Series

The vertical axis group is frontally fixed on the extraction axis. This results in reduced overhangs, high mechanical balance and total absence of collision problems between the article and the extraction axis.

Vertical axis – L type

Available with the L type telescopic double-stroke vertical axis only. Maximum stroke for minimum vertical dimensions is the ideal solution for installations with ceiling height restrictions.

cartesian-top-entry-robot-mc3-e-series-evo-campetella-robotic-center

Configurable wrist: up to 4 servo-driven digital axes

The robot is equipped as standard with a pneumatic C-axis wrist that allow the flat positioning of the picked-up parts in the mold, making it possible to choose between two programmed positions (vertical / horizontal).

For more complex handling requirements, different wrists with additional axes pneumatic or electric drive are available. In the most advanced configuration the wrist is featured by a servo-driven digital axis, allowing the manipulator the maximum control with its 4 electrical axes.

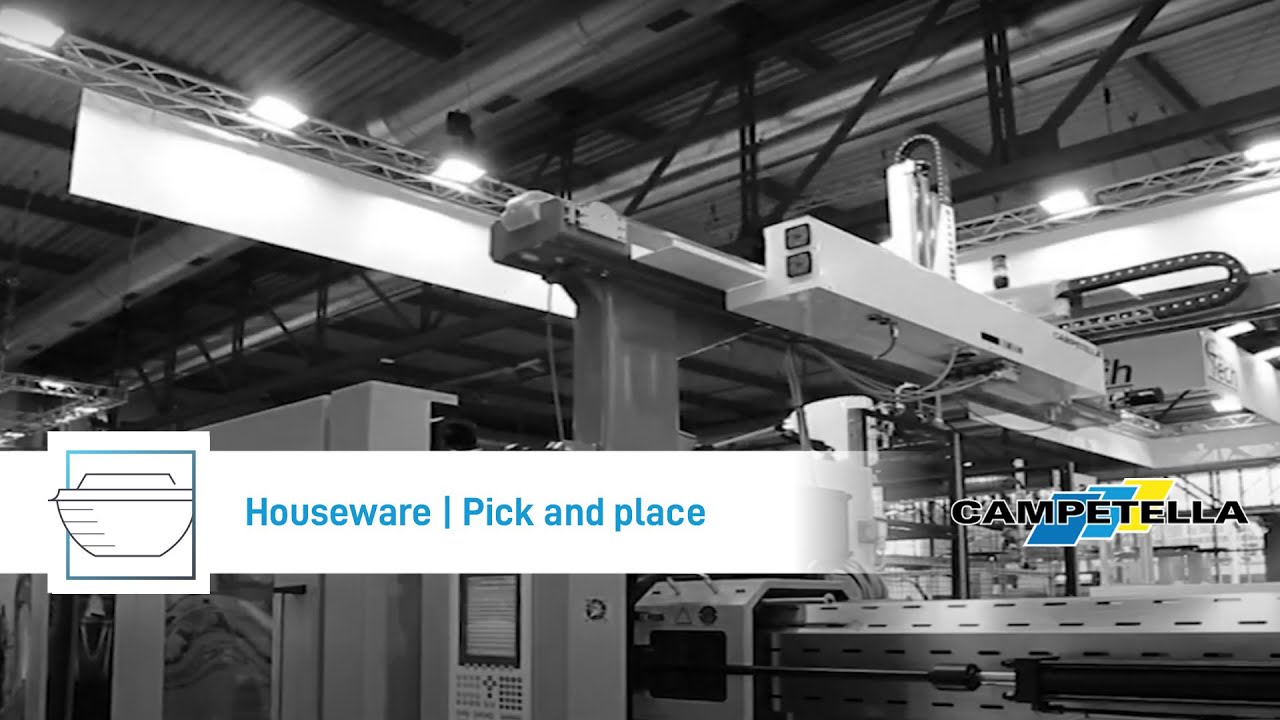

Please, accept marketing cookies to watch this video.

Technical features

Technical features	MC3 - 5 L	MC3 - 6 L	MC3 - 7 L
Maximum payload [kg]:	16	16	16
Vertical axis:	Telescopic	Telescopic	Telescopic
Z axis stroke – Horizontal [mm]:	2500	3000	3500
X axis stroke - Extraction [mm]:	1200	1200	1200
Y axis stroke - Vertical [mm]:	1800	1800	1800
X,Y,Z axes motion:	AC synchronous brushless servomotors
X,Y,Z axes guidance system:	Sliding blocks with roll-by-balls on a hardened steel prismatic guide
Positioning repeatability [mm]:	± 0,1
Pneumatic C axis rotation [deg]:	0°/ 90°
Pneumatic AB axis rotation[deg]:	0°/90° o 0°/180°
Electric B axis rotation [deg]:	0° ÷ 335°
Control unit:	Campetella EVO proprietary system
